Description
IMPORTANT: Proper installation requires careful cutting and trimming of the car’s shift plate and center console (instructions included)!
- Holds standard cans or small coffee cups.
- AUTOMATIC transmission center consoles only!
- Replaces existing ash tray section of shifter plate
- ‘factory appearance’ design, top surface texture similar to center console
- durable ABS plastic
- color is satin flat black
- powered USB port option available

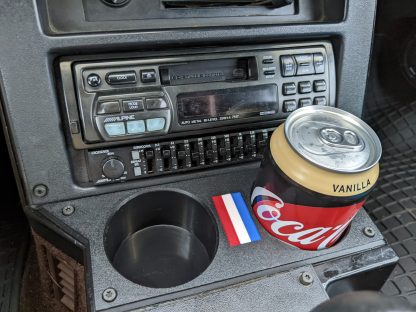

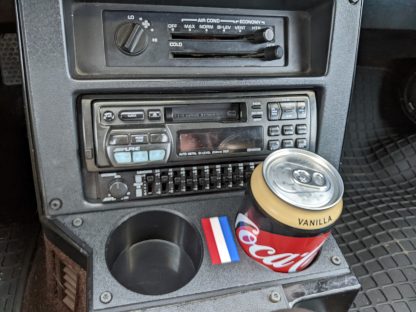

Called “classic center” because it resembles a design first appeared on the internet. This, however, is an original design. It is a flush fit same as the ash tray (see pictures). It therefore REQUIRES CAREFUL CUTTING AND REMOVAL of the existing ashtray section of center console shifter plate. Also required is the trimming of the hidden plastic inner flange of the console by about a quarter inch to make room for the two cup sleeves. Recommended cutting tool is a Dremel rotary tool with a cut-off wheel at low speed. Re-use the four existing factory installed 3/4 inch long torx head bolts, from the ash tray console, to fasten/secure the bracket.
For center consoles with automatic transmissions. Requires clean cutting along the line between the ash tray and shifter plate. For center cup holders that fit a manual transmission see the [su_permalink id=7714] which overlap and hide the cutting edge.

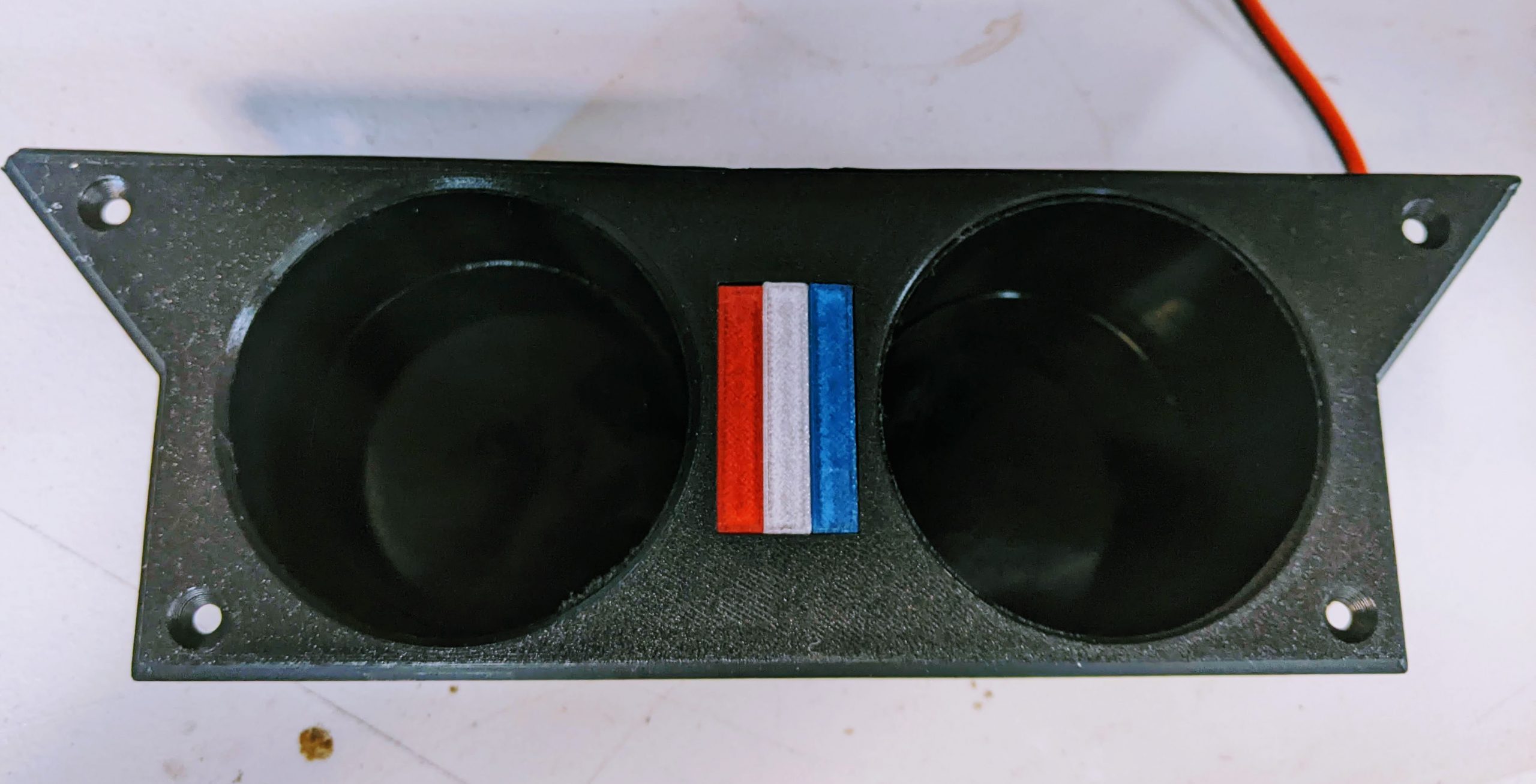

POWERED USB PORT OPTION: Places a USB port between the two cup holders. Port is fused for 3 amps and includes wire tap connectors. It is recommended that power be tapped from the stereo power wire that is switched to the ignition.
REQUIRES CAREFUL CUTTING and removal of the existing ashtray section of center console shifter plate. Also required is the trimming of the hidden plastic inner flange of the console by about a quarter inch to make room for the two cup sleeves. Recommended cutting tool is a Dremel rotary tool with a cut-off wheel at low speed. Re-use the four existing factory installed 3/4 inch long torx head bolts, from the ash tray console, to fasten/secure the bracket.
THIS ITEM REQUIRES CAREFUL CUTTING and removal of the existing ashtray section of center console shifter plate. Also required is the trimming of the hidden plastic inner flange of the console by about a quarter inch to make room for the two cup sleeves. Recommended cutting tool is a Dremel rotary tool with a cut-off wheel at low speed. Instructions for cutting are included.
For center consoles with automatic transmissions. Requires clean cutting along the line between the ash tray and shifter plate.
NOTE: FOR 82-84 Camaros these cup holders provide space for the original automatic transmission rigid curved shifter dust cover strip (instead of the later model ‘rolltop’ dust strip). There is enough gap for the cover strip to pass between the cup sleeves when the shifter is in ‘Park’. However, part of the forward strip “guide” may also need trimming.
There is no need to modify the cup holders. MODIFIED cup holders cannot be returned.
FITS ThirdGen Chevrolet Camaros MODEL YEARS: 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
